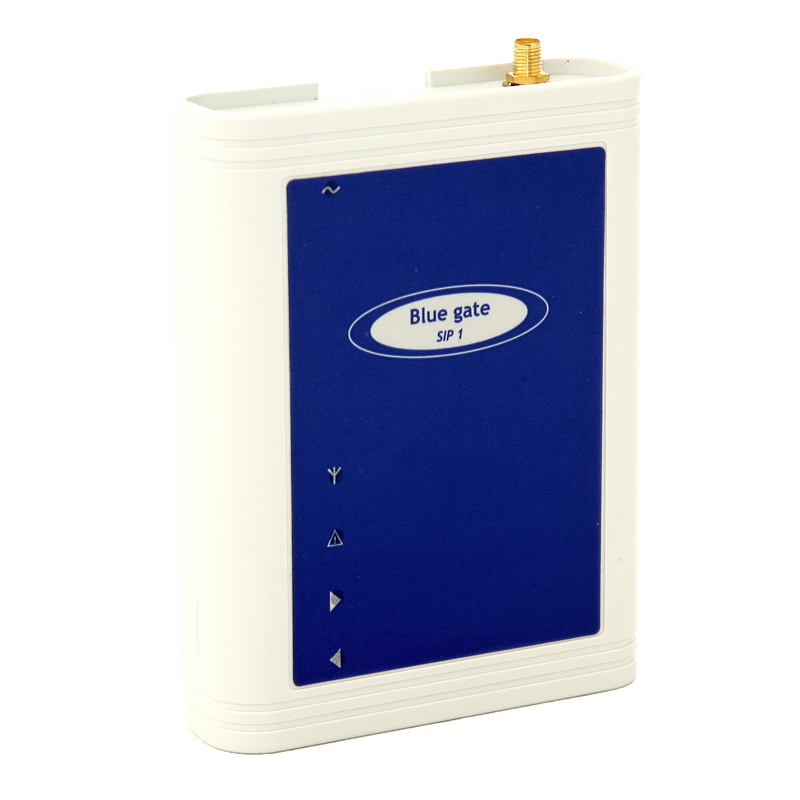

Alphatech BlueGate SIP1
1xGSM adapter

Alphatech Technologies completes its range of GSM gateways integrating the SIP protocol. Featuring similar functionalities as our analog and ISDN gateways, BlueGate SIP1 offers connectivity to  IP-SIP PBXs.

The BlueGate SIP1 can backup your VoIP infrastructure and avoid a total breakdown of telephone connection in your company in case of internet failure.

Single user or a very small office can benefit from the simple, basic, internal SIP proxy server. Once configured in the SIP proxy server mode, you can register up to 10 IP phones directly on the gateway.

Naturally, the key application for the BlueGate SIP1 is connection to a SIP based PBX.

Main benefits:

• Outstanding quality
• Very reliable, thanks to the Siemens GSM module
• Compact size (100 x 130 x 37 mm)
• Feature-rich
• Easy to maintenance
• Simple programming
• Built-in SIP proxy server for 10 users
• Decent price

Technical data:

• 1 GSM channel
• Ethernet – 10/100Mb with standard BaseT and 100BaseTx, connector RJ45
• Codecs: G711u, G711a, G726, GSM
• Protocols: IP, TCP, UDP, http, TELNET, SIP, RTP
• VAD (Echo cancellation)
• Management: web, telnet
• CLIP / CLIR
• DISA - connection to an operator or a specified extension number (optional)
• SMS_Mail SW for sending/receiving text messages via your mail server (optional)
• Internal basic SIP proxy server for max. 10 users so you can use your phones even without PBX
